Help me identify this (supposedly) 350 please.

[Rickard0]

I just picked this engine up on FaceBook, and can't seem to identify the year. I looked at the obvious placed, but nothing is there. I do see three numbers between the two sparkplugs, looks like 110 or 116. Images are attached as well as on the imgur link. One image the passenger side exhaust manifold. I am at a loss

https://imgur.com/a/nQOjIty



[Bob]

I think the first step is to identify it as a Buick 350. Here are two links to help with that. The second is a more comprehensive version of the first.

Visually Identifying GM V-8 Engines, Handy Quick Reference

Visually Identifying GM Engines



[Rickard0]

Distributor at the front of the engine, tilted to the drivers side <-- Yes
6 bolt valve covers <-- Yes
350 - 3.800” x 3.850”, 1977-81, GM Corporate Blue <-- Valve covers are Blue


That narrows it down, any way to get a little more specific? Or are the 77-81 identical?



[Bob]

I assume you have seen this description of the locations, pictures FOUND HERE:
The engine serial number is stamped on the front of the left cylinder bank. The production code number is between the left exhaust manifold and the two front spark plugs.



[Rickard0]

I did see that. Thats why I provided pictures.

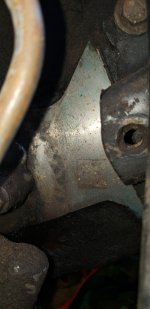

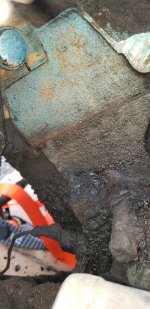

picture 1 is the driver's side front bank.

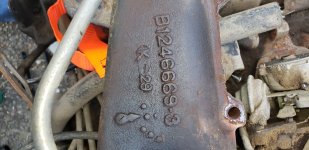

Picture 2 is the passenger side. ( i probably need to try and clean it again)

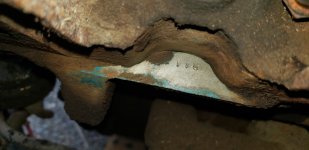

picture 3 is between the two spark plugs. That should be the production code, but I have not been able to find a reference to 110 or 116

I do however appreciate the assistance.



[Buick Mark]

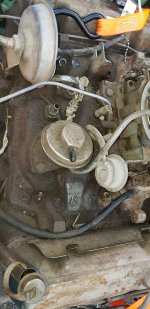

Going by the EGR valve I'd say at least a 1975 or later
